9.75″ RIGHT MOTOR REPLACEMENT BLOWER
FW1907
Previous
Next
Sealed ball bearing replacement blower. Does NOT include noise reduction padding, Velcro or power cord. If you’re installing a blower for the first time, a blower kit may be required. Replacement blowers are intended to replace worn or defective blowers and do not include the components of a full blower kit.
110CFM

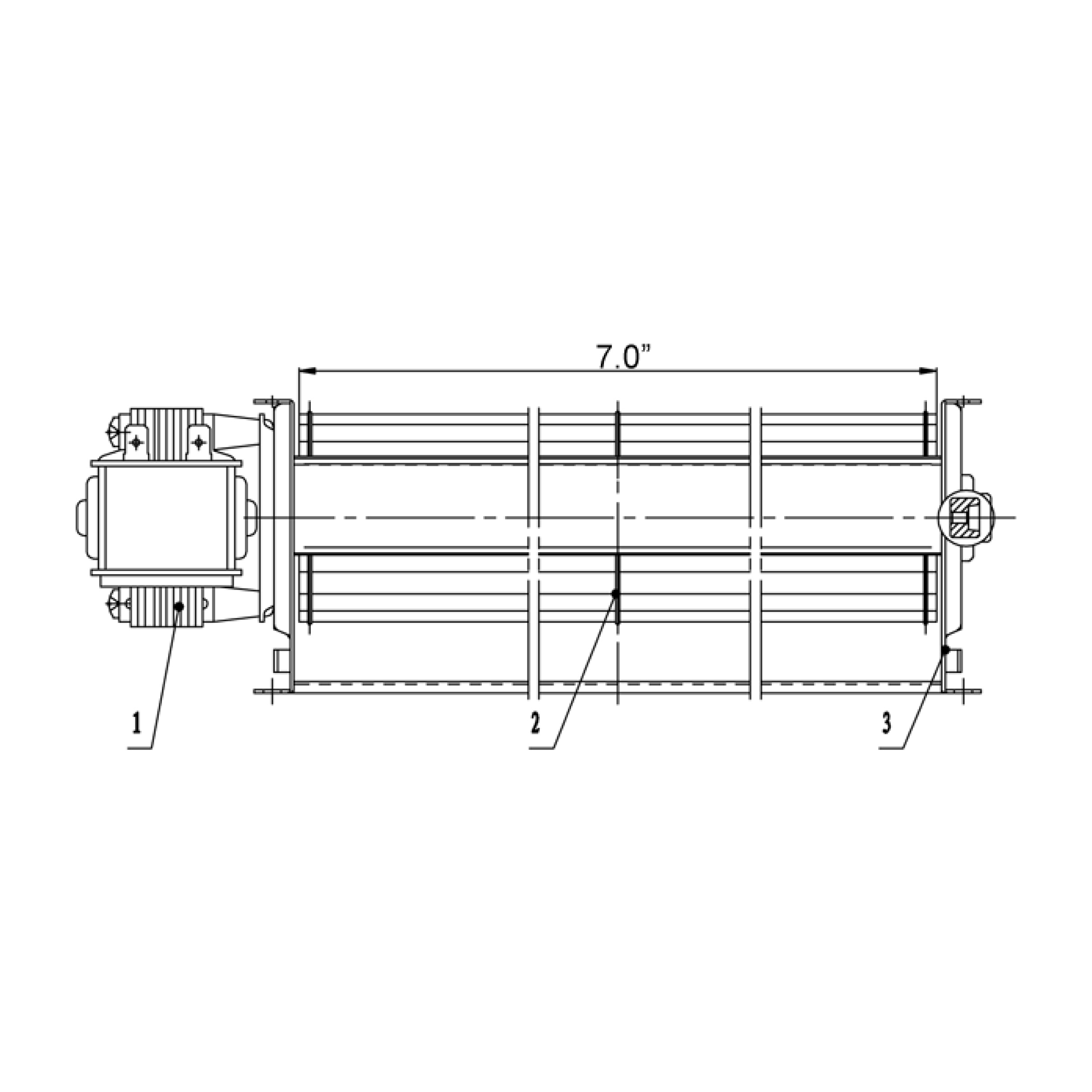

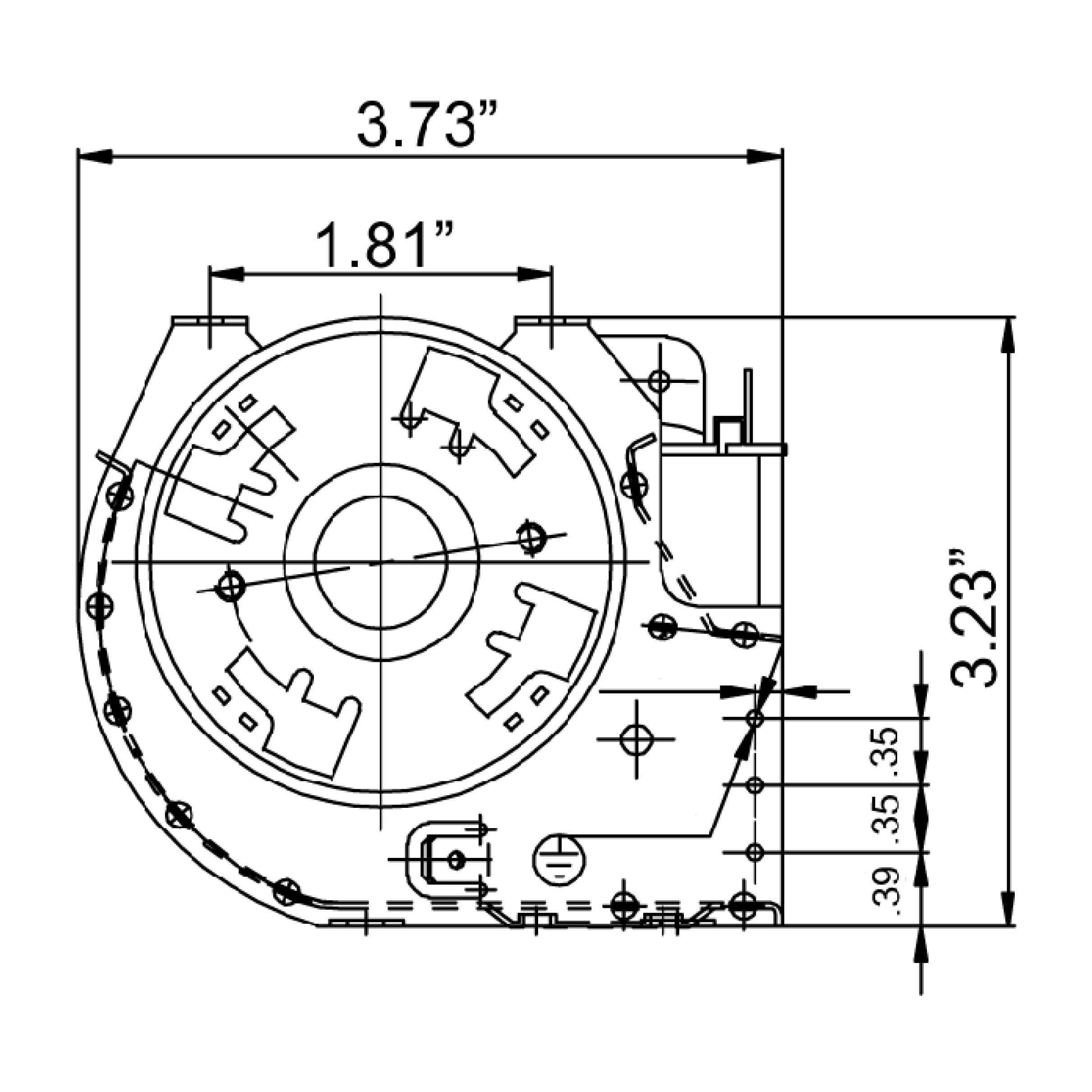

9.75″ x 3.73″ x 3.23″

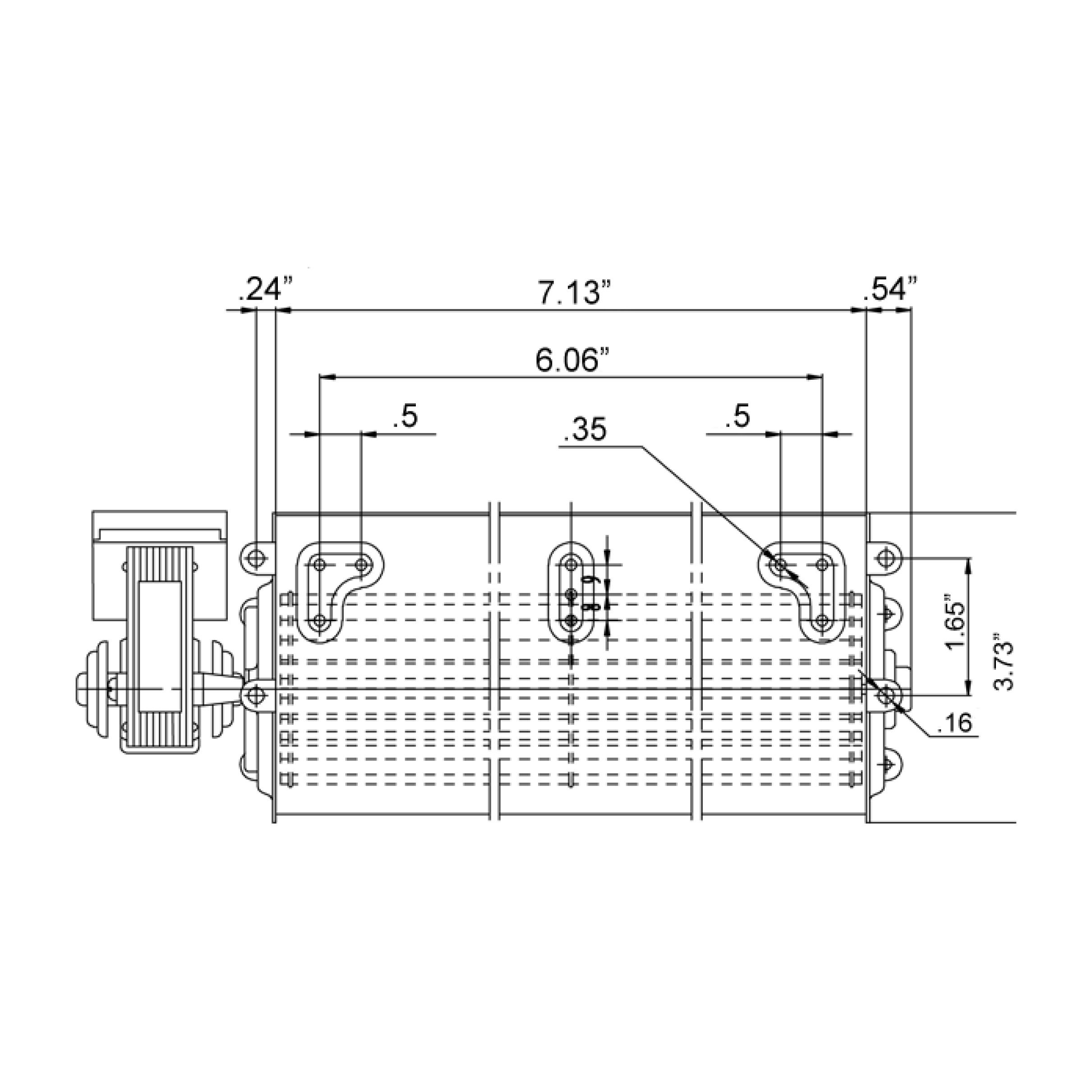

Air discharge length 7.13″
Power cord not included
LENGTH X WIDTH X HEIGHT (W/O BRACKET): 9.75″ X 3.73″ X 3.23″
AIR DISCHARGE LENGTH: 7.13″
MOTOR TYPE: AC SHADED POLE
ROTATION: CCW
MOTOR BEARING TYPE: BALL
OUTBOARD BEARING TYPE: BALL
HIGH TEMP LUBRICATION: YES
INSULATION: CLASS H (RATED TO 392°F)
MOTOR RPM: 3000
AIRFLOW IN C.F.M: 110
MOUNTING: MOUNTS TO GZ550 & EP62-1 BRACKETS
VOLTS: 120
FREQUENCY: 60 HZ
POWER CONSUMPTION: 35 WATTS
POWER CORD: NOT INCLUDED
RHEOSTAT VARIABLE SPEED: NOT INCLUDED
THERMOSTAT: NOT INCLUDED
BLADE MATERIAL: ALUMINUM
FRAME MATERIAL: ALUMINUM
PACKAGING MATERIALS: SHIPPING BOX, BUBBLE WRAP, FOAM
CONTINENTAL
BC36, BCDV33, BCDV34, BCDV36, BCDV40, BCDV42, BCDV48, BCNV36, BCNV40, BCNV42, CDV33, CDV34, CDV36, CDV70, CHD35, CHD40, CHD46, CHDX40, CLHD45, CVF36, CVF40, CVF42
NAPOLEON
BGD33, BGD34, BGD36, BGD36CF, BGD40, BGD42, BGD48, BGNV36, BGNV40, BGNV42, GD15, GD16, GD17, GD19, GD20, GD22, GD25, GD27, GD34, GD36, GD36CF, GD40, GD45, GD70, GD1800, GD3000, GD3200, GI3014, GI3016, GS3500, GVF36, GVF40, GVF42, HD35, HD40, HD46, HDX40, LHD45
-
WARNING: WHEN DEALING WITH ELECTRICITY, TAKE ALL NECESSARY PRECAUTIONS TO AVOID BEING SHOCKED.
PROP 65 WARNING: CANCER.HTTPS://WWW.P65WARNINGS.CA.GOV/
