12.5" LEFT MOTOR REPLACEMENT BLOWER

FW1908

Previous
Next

Sealed ball bearing replacement blower. Blower includes Velcro, double-side tape and noise reduction padding. Power cord and blower support brace are NOT included. If you’re installing a blower for the first time, a blower kit may be required. Replacement blowers are intended to replace worn or defective blowers and do not include the components of a full blower kit.

130CFM

12.5″ x 3.73″ x 3.23″

Air discharge length 9.57″


Power cord not included

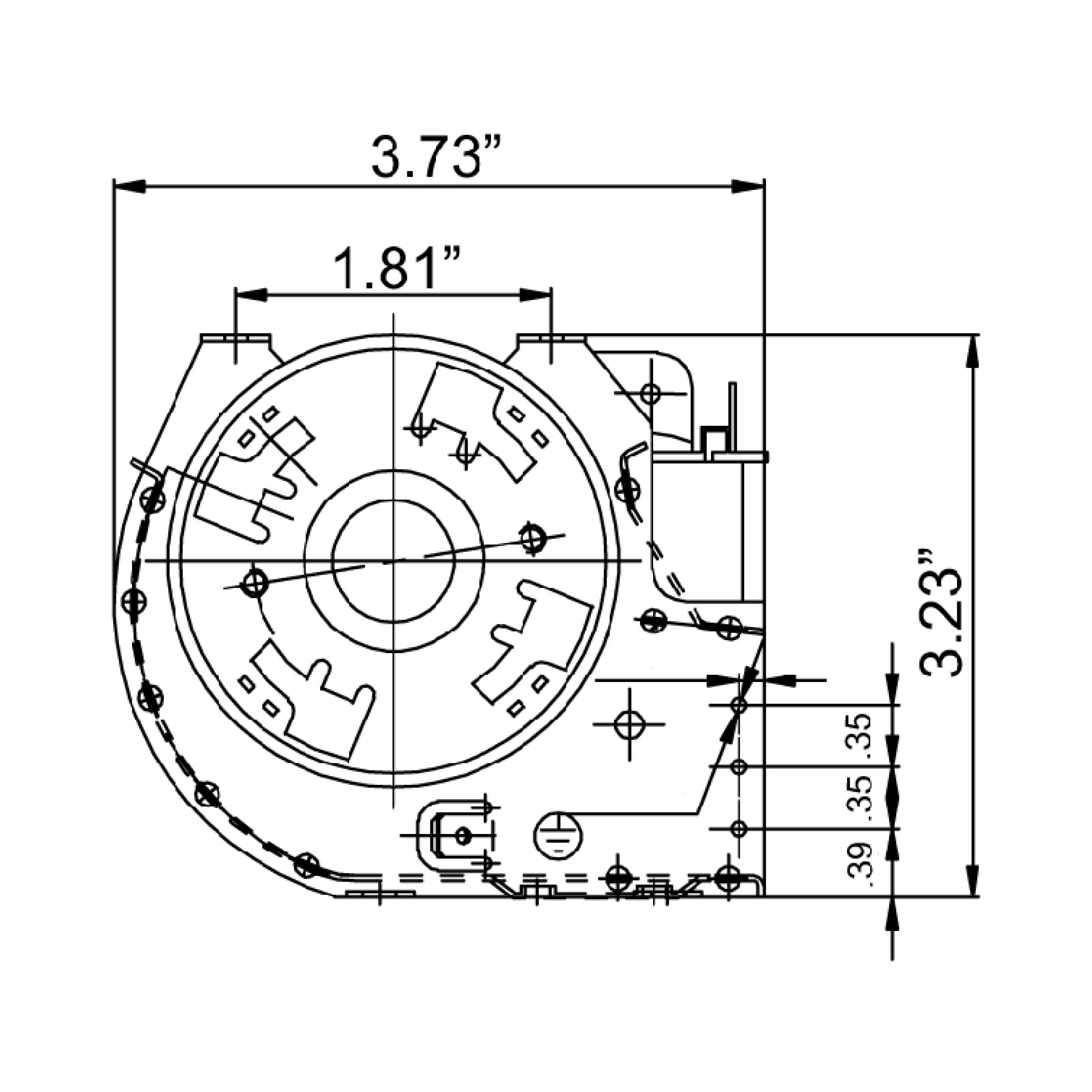

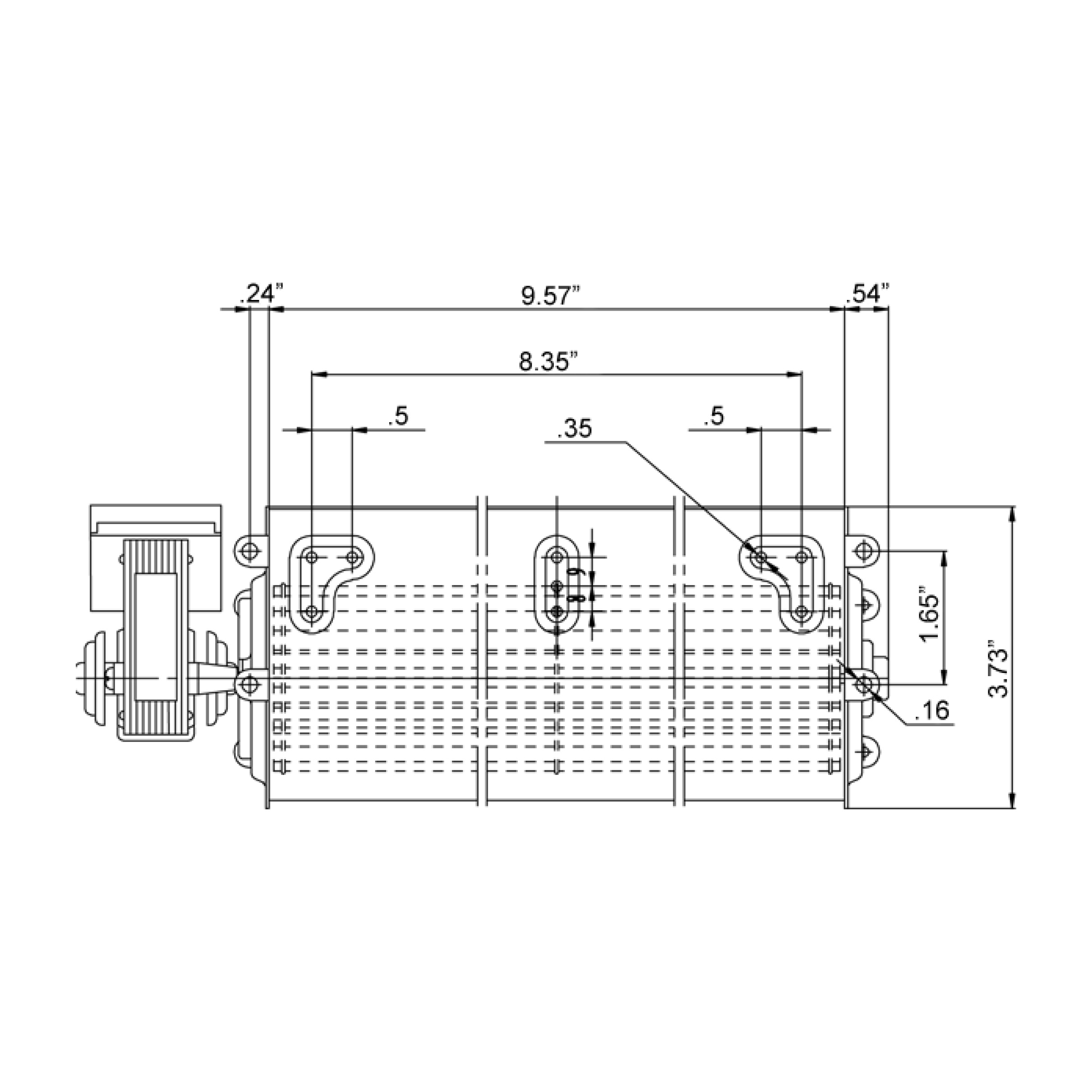

LENGTH X WIDTH X HEIGHT (W/O BRACKET): 12.5″ X 3.73″ X 3.23″
AIR DISCHARGE LENGTH: 9.57″
MOTOR TYPE: AC SHADED POLE
ROTATION: CW
MOTOR BEARING TYPE: BALL
OUTBOARD BEARING TYPE: BALL
HIGH TEMP LUBRICATION: YES
INSULATION: CLASS H (RATED TO 392°F)
MOTOR RPM: 3000
AIRFLOW IN C.F.M: 130
MOUNTING: MOUNTS USING SUPPLIED VELCRO AND TAPE
VOLTS: 120
FREQUENCY: 60 HZ
POWER CONSUMPTION: 35 WATTS
POWER CORD: NOT INCLUDED
RHEOSTAT VARIABLE SPEED: NOT INCLUDED
THERMOSTAT: NOT INCLUDED
BLADE MATERIAL: ALUMINUM
FRAME MATERIAL: ALUMINUM
PACKAGING MATERIALS: SHIPPING BOX, BUBBLE WRAP, FOAM

MAJESTIC
33XDV, 36XDV, 39XDV, 360DVS, 36CFDV, BC36, BC36I, BC42, BC42I, BHDR36, BHDT36, 33BDVR, 36BDVR, 39BDVR, 43BDVR, 33BDVT, 36BDVT, 39BDVT, 43BDVT, 36CDVX, 36CDVZ, DBR33, DBR36, DBR39, DBT33, DBT36, DBT39, 300DVB, 400DVB, 500DVB, 600DVB, 300DVBH, 400DVBH, DVB4136, DVR33, DVR36, DVR39, DVBR36, DVBR42, DVRT36, DVRT39, DVRT41, DVRT43, DVT36, DVT39, DVT43, DVTS2, DVRSL, DVRSR, FSUV, DV360, DV580, 33LDVR, 36LDVR, 39LDVR, 43LDVR, 33LDVT, 36LDVT, 39LDVT, 43LDVT, LHEC20, LHEC30, LHECDV20, LHECDV30, NV360, NV580, NVBC36, NVBC42, NVC36, NVC39, NVC43, RDV4136, RFS22, RFS32, RFS42, RFSDV22, RFSDV32, RFSDV42, RHE25, RHE32, RHE42, RHEDV25, RHEDV32, RHEDV42, RUVS32, TL36, TL42, UVC33, UVC36, UVC43, UVSRC36, UVSRC42, UVS33, UVS36, UVS43, UV33C, UVBC33, UVBC42, UVDC36, UVDC42

MARTIN
CDVR33, CDVR36, CDVR42, CDVR47, CDVT33, CDVT36, CDVT42, CDVT47

MONESSEN
36CDVZ, SC36, SC42

TEMCO
36CDVR, 36CDVX, 33RDV, 36RDV, 39RDV, 33RDVD, 36RDVD, 39RDVD, 33TDV, 36TDV, 39TDV, 33TDVD, 36TDVD, 39TDVD, 41DV

VERMONT CASTINGS
33BDVR, 36BDVR, 39BDVR, 43BDVR, 33BDVT, 36BDVT, 39BDVT, 43BDVT, 33XDV, 36XDV, 39XDV, 36CFDV, 36CDVX, 36CDVZ, BHDR36, BHDT36, CDVR33, CDVR36, CDVR42, CDVR47, CDVT33, CDVT36, CDVT42, CDVT47, DBR33, DBR36, DBR39, DBT33, DBT36, DBT39, LHEC20, LHEC30, NV360, NV580, NVBC36, NVBC42, NVC36, NVC39, NVC43, 300DVB, 400DVB, 500DVB, 600DVB, 300DVBH, 400DVBH, DVB4136, DVR33, DVR36, DVR39, DVBR36, DVBR42, DVRT36, DVRT39, DVRT41, DVRT43, DVT36, DVT39, DVT43, DVTS2, DVRSL, DVRSR, RFS22, RFS32, RFS42, RFSDV22, RFSDV32, RFSDV42, RHE25, RHE32, RHE42, RHEDV25, RHEDV32, RHEDV42, RUVS32

PROFESSIONAL GRADE
