15" LEFT MOTOR REPLACEMENT BLOWER

FW1910

Previous
Next

Sealed ball bearing replacement blower. Blower includes Velcro, double-side tape and noise reduction padding. Power cord and blower support brace are NOT included. If you’re installing a blower for the first time, a blower kit may be required. Replacement blowers are intended to replace worn or defective blowers and do not include the components of a full blower kit.

160CFM

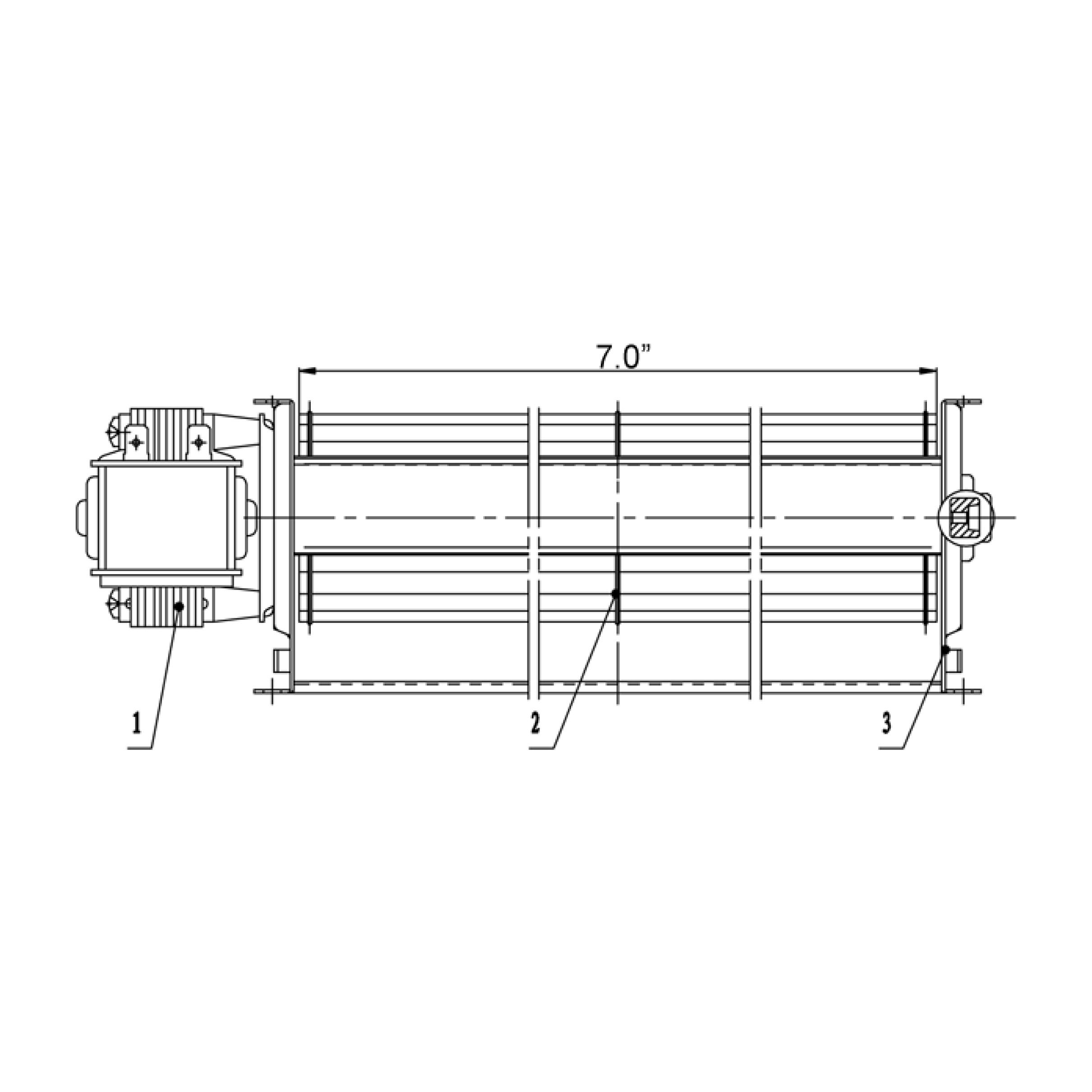

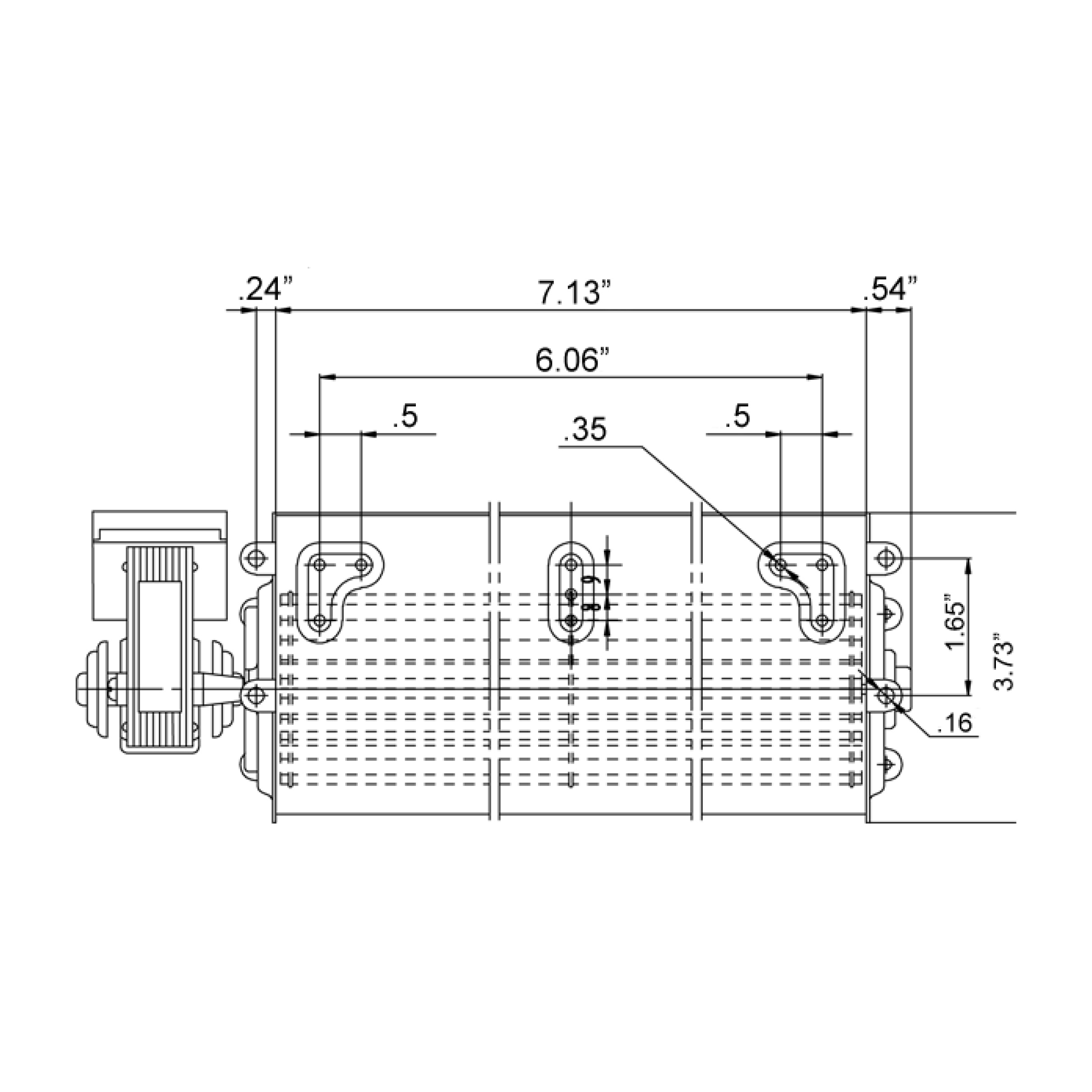

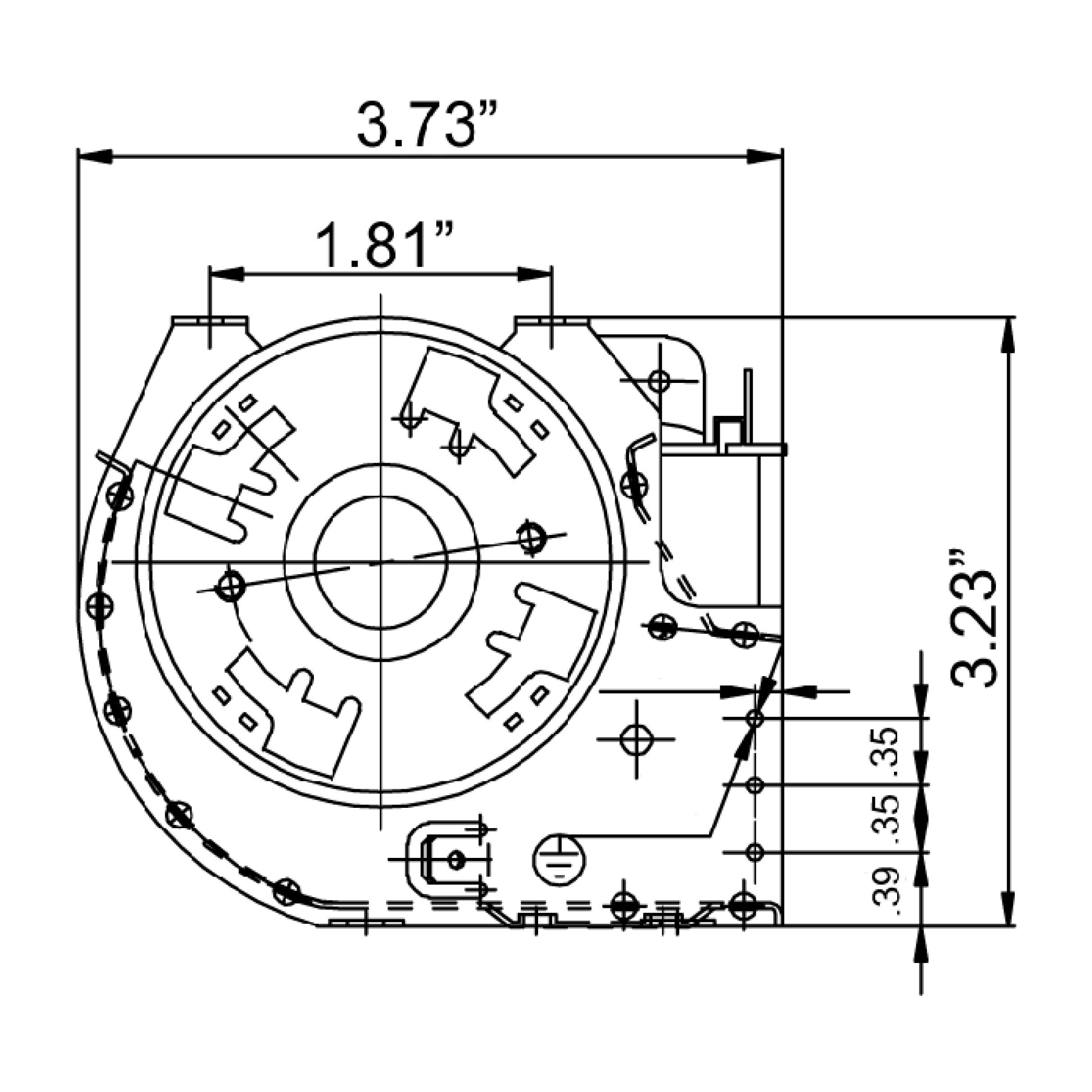

15″ x 4″ x 3.5″

Air discharge length 12.5″


Power cord not included

LENGTH X WIDTH X HEIGHT (W/O BRACKET): 15.0″ X 4.0″ X 3.5″
AIR DISCHARGE LENGTH: 12.5″
MOTOR TYPE: AC SHADED POLE
ROTATION: CW
MOTOR BEARING TYPE: BALL
OUTBOARD BEARING TYPE: BALL
HIGH TEMP LUBRICATION: YES
INSULATION: CLASS H (RATED TO 392°F)
MOTOR RPM: 3000
AIRFLOW IN C.F.M: 160
MOUNTING: MOUNTS USING SUPPLIED VELCRO AND TAPE
VOLTS: 120
FREQUENCY: 60 HZ
POWER CONSUMPTION: 52 WATTS
POWER CORD: NOT INCLUDED
RHEOSTAT VARIABLE SPEED: NOT INCLUDED
THERMOSTAT: NOT INCLUDED
BLADE MATERIAL: ALUMINUM
FRAME MATERIAL: ALUMINUM
PACKAGING MATERIALS: SHIPPING BOX, BUBBLE WRAP, FOAM

ASTRIA BY IHP
ASTRIA UNIVERSAL FIREBOX (32ZP2, 36ZP2, 36ZP3, 42ZP2, 42ZP3)

COMFORT FLAME BY FMI
B36L-M, B42LI-M, CUVF36/42

COMFORT GLOW BY FMI
CDV34, CDV37, CDV41, CHDV36NR, CHDV47

FMI
B36 WOOD BURING, B36L-MC, BV36L, B42, BV42L, BFBF36, BFBF42, BFBL36, BFBL42, C36, C42, CD36, CDC36, CDV36, CGCDV36, CGCDV42, CHDV36NR, CHDV36NRA, CHDV36NR-B, CHDV36NR-C, CTDV32, CTDV36, CTDV36NR, CUVF36, CUVF42, CVDV42NR, CWB36C, CWC36C, CWC42C, DVC36, DVC42, FBL32, FBL36, FBL42, FSF32, FSF36, K36, K42, KC36, KCC36, KC42, KCC42, L32, L36, L42, M36, M42, T32, T36, TC32, TC36, TCC36, V32, V36, V42, VB36 WOOD BURING, VBV36L, VB42, VBFBF36, VBFBF42, VBFBL36, VBFBL42, VBV42L, VC36, VC42, VCC36, VCC42, VCD36, VCDC36, VDVC36, VDVC42, VFB32, VFB36, VFB42, VFBF32, VFBF36, VFBF42, VFBL32, VFBL36, VFBL42, VK36, VK42, VKC36, VKCC36, VKC42, VKCC42, VL32, VL36, VL42, VM36, VM42, VSGF36, VT32, VT36, VTC32, VTC36, VTCC36, VV36, VV42, VVC36, VVC42, VVCC36, VVCC42

DESA TECH
B36/VB36 BUNGALOW, B36L-MC, BV36L CAPE COD, B42 BUNGALOW, BV42L CAPE COD, CHDV32NR, CHDV36NR, CTDV32NR, CTDV36NR, CWB36C, K36, K42, T32, T36, V32, V36, V42, VB36, VB42, VBV36L/VBV42L, VK36, VK42, VSGF36, VT32, VT36 TUDOR, VV36, VV42 VICTORIAN

VANGUARD
BV36L/BV42L, CWB36C, VB36, VB42, VBV36L/VBV42L, VC36L, V42L

VEXAR
CD32M-B, CD32, CD36, CD42

PROFESSIONAL GRADE
